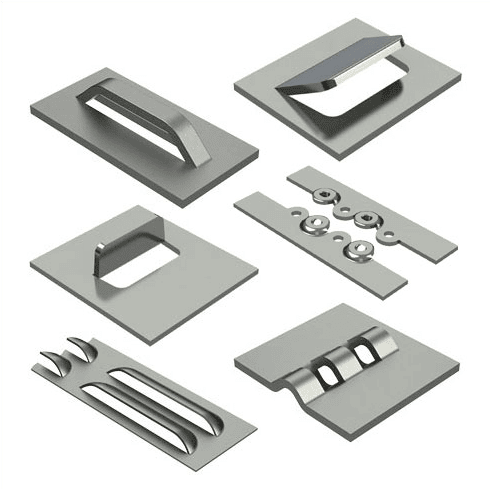

Punch forming is a highly efficient way to add formed features such as louvers and embossments directly into precision sheet metal parts.
The process uses a punch and die to form the sheet metal into a specific shape. For engineers designing parts that will be punch formed, one practical DFM guideline can have a significant impact on manufacturability, tooling requirements, cost, and lead time: the 3:1 rule.
At Approved Sheet Metal, the 3:1 rule means that a punch-formed feature should generally extend no more than 3 times the material thickness above the surface of the sheet when using standard punch tooling. For example, a part made from 0.060″ thick material should generally have a maximum formed feature height of approximately 0.180″.
Why Does the 3:1 Rule Matter in Sheet Metal Punch Forming?
The 3:1 rule is a practical design-for-manufacturability guideline based on the capabilities of standard punch forming tooling and the behavior of sheet metal during forming.
Unlike a simple hole or slot that removes material from a flat sheet, a louver, embossment, or similar feature requires the material to be physically displaced and formed. As the height of the feature increases relative to the material thickness, creating that feature with standard punch tooling becomes more difficult.
Several factors can affect whether a punch-formed feature is practical:
- Material thickness: Thicker material generally allows a taller formed feature under the 3:1 guideline.
- Material type: Different alloys have different forming characteristics, including ductility and springback.
- Feature geometry: A louver, embossment, bridge, or other formed feature may place different demands on the material and tooling.
- Tooling: Standard punch tooling has practical limits on the height and geometry it can form reliably.
- Part geometry: Nearby bends, holes, edges, and other formed features can affect tooling access and manufacturability.
Keeping formed features within practical limits helps us use standard tooling and a repeatable punch press operation rather than introducing custom tooling or additional manufacturing processes.
What Is the 3:1 Rule for Sheet Metal Punching?
The 3:1 rule states that when designing a punch-formed feature in a precision sheet metal part, the feature’s height should generally be no more than 3 times the material thickness above the material surface.
A louver height of approximately 0.180″, which is 3 times the 0.060″ material thickness, would be a much better starting point for a feature intended to be produced with standard punch tooling.
The calculation is simple:
Maximum recommended formed feature height = Material thickness × 3
Using that guideline, some common examples are:
| Material Thickness | 3:1 Formed Feature Height |
|---|---|
| 0.030″ | 0.090″ |
| 0.040″ | 0.120″ |
| 0.050″ | 0.150″ |
| 0.060″ | 0.180″ |
| 0.090″ | 0.270″ |
| 0.125″ | 0.375″ |
These values are DFM guidelines rather than guarantees that every feature at or below a 3:1 ratio can be punch formed. The material, feature geometry, available tooling, and overall part design still need to be reviewed.
What Sheet Metal Features Does the 3:1 Rule Apply To?
The 3:1 rule is most relevant to features that are formed directly into the sheet using punch tooling rather than features that are simply cut into the material.
Common examples include:
- Louvers
- Embossments
- Raised or formed features
- Other features produced using form tooling in a punch press
The guideline does not mean that every formed sheet metal feature is limited to 3 times the material thickness. Press brake bends, for example, are produced using a different forming process and have their own DFM considerations. The 3:1 rule discussed here specifically relates to punch-formed features and the practical capabilities of standard punch tooling.
Does Material Thickness Affect Maximum Punch Form Height?
Yes. Because the guideline is based on a ratio of feature height to material thickness, changing the material thickness changes the recommended maximum feature height.
For example, a 0.120″ tall punch-formed feature represents a 3:1 ratio in 0.040″ material, but only a 2:1 ratio in 0.060″ material.
This is why a feature that works well on one version of a part may need to be reviewed if the same design is changed to a thinner material.
Material thickness is not the only consideration. Material type and temper also affect formability, so two materials of identical thickness may behave differently during forming.
What If You Can’t Follow the 3:1 Rule?
There are applications where the function of the part requires a formed feature taller than the 3:1 guideline. In those cases, there are usually two paths forward: use a different manufacturing approach or revise the design.
1. Performing a stamping operation with custom tooling
If a specific formed feature must exceed the capabilities of our standard punch tooling, custom tooling or a different forming operation may be an option.
The tradeoff is cost and lead time. Custom tooling can be expensive and may take weeks to produce. For prototypes and low-volume sheet metal parts, that additional investment can be difficult to justify unless the feature is critical to the product’s function.
For higher quantities, however, the economics can change. If the same feature will be produced repeatedly in sufficient volume, investing in dedicated tooling may make more sense.
2. Revising the design
For prototypes and low-volume production, revising the design is often the faster and more economical solution.
Louvers are a good example. Their primary purpose is often to provide airflow or ventilation. An engineer may initially design a small number of relatively tall louvers to achieve the required open area.
If those louvers exceed the practical forming height, one solution may be to add more louvers while reducing the height of each individual feature. This can provide the required ventilation while keeping the features within the capabilities of the punch press and available tooling.
A similar approach can be used with embossments. If an embossment is intended to maintain spacing between two components but would need to be excessively tall, a separate spacer, standoff, or other design solution may accomplish the same function more efficiently.
Is the 3:1 Rule an Absolute Limit?
No. The 3:1 rule is a practical DFM guideline for designing features that can be produced efficiently with standard punch forming tooling. It should not be interpreted as a universal physical limit for all materials, tools, feature geometries, or forming processes.
Some features below a 3:1 ratio may still require review because of their geometry, location, material, or tooling requirements. Likewise, features beyond the guideline may sometimes be possible with custom tooling or another manufacturing method.
If a feature is close to or exceeds the 3:1 ratio, sending the design to the fabricator for review before finalizing the drawing can help determine the most practical approach.
Whether you’re looking for punch forming or other precision sheet metal fabrication services, our team is standing by to get started on your next project. Request a quote today!
Sheet Metal CAD Tooling Library
EMBOSSMENTS & LOUVERS
Say goodbye to the tedious process of designing basic sheet metal features from scratch. Our 3D tooling library empowers mechanical engineers and product developers to accelerate their design process by providing pre-designed tooling options. Focus on the creative aspect of your projects and deliver exceptional results faster.
Get the 3D modelsThe 3:1 Rule Sheet Metal Punch Forming FAQ
What is the 3:1 rule in sheet metal punching?
The 3:1 rule in sheet metal punching states that the height of a formed feature should not exceed 3 times the material thickness above the material surface.
Why is it important to follow the 3:1 rule in sheet metal punching?
Following the 3:1 rule is important because the punch press is not designed to accommodate formed features that violate this rule. By adhering to the rule, you ensure that your punched sheet metal prototypes can be produced efficiently and effectively.
What should I do if I can’t follow the 3:1 rule in sheet metal punching?
If you are unable to follow the 3:1 rule, there are two options available. The first option is performing a stamping operation with custom tooling, although this can be expensive and time-consuming. The second option is revising the design to achieve the required functionality while accommodating the 3:1 rule.
Can I perform a stamping operation with custom tooling if I need a specific feature that violates the 3:1 rule?
Yes, if you require a specific feature that violates the 3:1 rule, a stamping operation with custom tooling can be performed. However, it’s important to note that this approach can be costly and time-consuming, making it less feasible for sheet metal prototypes.
How can I revise the design to accommodate the 3:1 rule in sheet metal punching?
To accommodate the 3:1 rule, you can revise the design by adjusting the height of the formed feature. For example, if you need a louver that exceeds the 3:1 ratio, you can lower the height of each louver and add more louvers to achieve the required functionality while still adhering to the rule. A similar approach can be taken for embossments by considering alternatives like spacers.
