A good sheet metal fabrication drawing does more than show dimensions. It tells the fabricator which requirements control the finished part, including material, thickness, tolerances, hardware, finish, grain direction, revision, weld requirements, and any dimensions that apply after forming or finishing.
5 Ways to Optimize Drawings for Precision Sheet Metal Fabrication Services
Follow these best practices when creating a sheet metal fabrication drawing to reduce questions, avoid assumptions, and help your shop move the project into production faster:
1. List Part Numbers, Not Just the Part Name
Part names are useful descriptions, but every component should also have a unique part number.
The part name describes what the component is. The part number uniquely identifies the component.
A fabrication shop may have many brackets, panels, covers, bases, and enclosures moving through production at the same time. A unique part number makes it easier to distinguish one component from another and reduces the chance of confusing similar part names.
We recommend placing the descriptive name in the part description field and the identifying number or alphanumeric code in the part number field.
Your numbering convention is up to you. What matters most is that each unique component has its own identifier and that the same identifier appears consistently on the drawing, 3D model, purchase order, and assembly documentation.
2. Use the Exact Hardware Manufacturer and Part Number When Possible
Your fabricator needs to know exactly which hardware is required for the part.
A description such as “6-32 PEM nut” may still leave several possibilities because hardware can vary by fastener family, material, shank code, finish, locking style, and sheet-thickness requirement.
Whenever possible, provide:
- Hardware manufacturer
- Complete manufacturer part number
- Quantity
- Installation location
- Installation side or orientation, when important
Many companies use internal hardware numbers that differ from the manufacturer’s numbering system. We can cross-reference those internal numbers when needed, but providing the original manufacturer and part number removes ambiguity and can reduce engineering and purchasing time.
The exact hardware specification also allows us to verify the correct mounting-hole diameter, sheet thickness, shank code, and installation requirements before the part reaches the floor.
3. Provide Clear Revision Control
Whenever you make a revision, whether it is a note change or a significant geometry update, document it clearly.
A revision package should make it easy to determine:
- Revision letter or number
- Revision date
- Description of the change
- Which drawing is current
- Which 3D model is current
The drawing and 3D CAD model should always represent the same revision.
Revision information may appear in the title block, revision block, or both. If it appears in multiple places, make sure the information agrees.
Consistent revision documentation reduces back-and-forth and helps prevent an outdated model from being paired with a newer drawing, or vice versa.
4. Include Grain Direction When It Matters
If your part requires a #4 stainless finish, brushed finish, or another cosmetic grain direction, indicate the required orientation on the drawing.
Grain direction can affect the appearance of adjacent panels, covers, doors, and other visible components. If several parts will be assembled next to one another, inconsistent grain orientation may be noticeable even when each individual part is otherwise acceptable.
If grain direction is functionally or cosmetically important, show it explicitly rather than relying on a shop default.
5. Provide Complete Powder Coat Instructions
If you request powder coated parts, provide enough information to define the appearance and any functional finishing requirements.
When applicable, specify:
- Powder manufacturer
- Manufacturer product number
- Color or RAL code

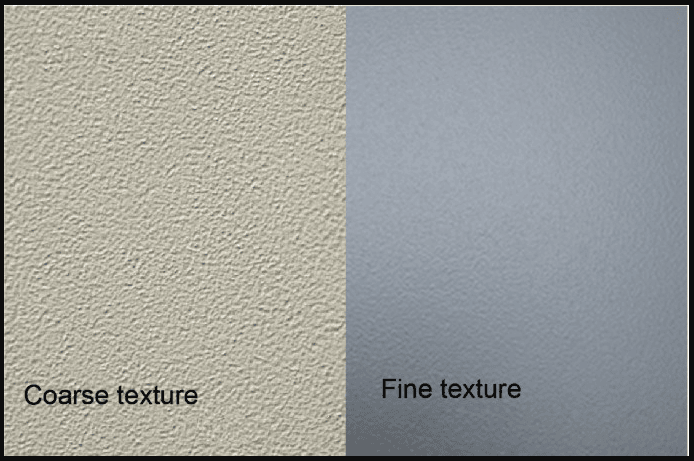

- Texture
- Gloss or sheen
- Masking locations
- Grounding or bare-metal contact points
- Thread protection requirements
- Critical dimensions that apply after finishing
If an exact color match is important, the powder manufacturer and product number are much more useful than a generic note such as “black powder coat.” If color itself is less important, a specified finish type such as matte, textured, smooth, gloss, or semi-gloss may provide enough direction.
What happens if important details are missing? At minimum, the project may require additional questions before manufacturing can begin. In a worse scenario, assumptions can result in a finished part that does not match the customer’s actual requirements.
At Approved Sheet Metal, we have processes in place to identify missing or conflicting information before production. For example, we review revision information and confirm finishing details when the drawing does not provide enough information to determine the required color, texture, or sheen.
The more complete the design package is when we receive it, the less time we need to spend resolving questions before fabrication can begin.
What Information Should Be on a Sheet Metal Fabrication Drawing?
A fabrication drawing should clearly communicate the requirements that cannot be determined from the 3D geometry alone.
Depending on the part, that may include:
- Part number and description
- Revision
- Material type and grade
- Material thickness
- Critical dimensions
- Dimensional tolerances
- GD&T and datums, when required
- Hardware manufacturer and part numbers
- Weld locations and requirements
- Cosmetic surfaces
- Grain direction, when applicable
- Finish specification
- Masking requirements
- Dimensions that apply after finishing
- Assembly or inspection requirements
Not every part needs every one of these callouts. The goal is to identify the requirements that control the finished component rather than adding unnecessary notes or tolerances.
3D Model vs. 2D Drawing: What Should Each File Communicate?
A 3D model and a 2D drawing serve different but complementary purposes in precision sheet metal fabrication.
The 3D model tells us what to make. The drawing tells us which requirements matter most.
| 3D CAD Model | 2D Fabrication Drawing |
|---|---|
| Finished part geometry | Material and thickness |
| Formed features and bends | Critical tolerances |
| Holes and cutouts | GD&T and datums |
| Assembly relationships | Hardware specifications |
| Part orientation | Weld callouts |
| Overall design intent | Finish and masking requirements |
| Mating component geometry | Cosmetic and inspection requirements |
Providing both files gives the fabricator the geometry needed for programming and the manufacturing requirements needed for quoting, fabrication, finishing, and inspection.
Why the 3D CAD Model Matters for Formed Sheet Metal
A complete 3D model allows ASM to review more than just the finished shape. It can help us evaluate:
- Whether the part can flatten correctly
- Whether the bends are accessible with press brake tooling
- Whether formed features interfere with one another
- Whether holes or hardware are too close to bends
- Whether the part fits within our equipment capabilities
- How multiple components fit together in an assembly
For formed parts, do not rely on a customer-created DXF flat pattern as the only production file.
The fabricator needs the finished 3D geometry, material, and thickness so the flat pattern can be developed using the bend deductions, bend radii, tooling, and forming processes that will actually be used to manufacture the part.
Preferred Digital File Formats for Sheet Metal Fabrication
Using standard file formats reduces translation issues and helps ensure that the fabrication team is reviewing the intended geometry.
STEP (.stp or .step)
STEP is one of the most useful neutral formats for sharing solid 3D geometry between different CAD systems. It allows the fabricator to inspect the finished geometry, formed features, and assembly relationships without requiring the same native CAD software used by the designer.
Native SOLIDWORKS Files
When available, native SOLIDWORKS sheet metal files can be especially useful because they may contain sheet metal features, bend information, configurations, and design intent that can assist with DFM review.
PDF Drawings
A PDF is typically the simplest way to communicate the controlled 2D drawing, including tolerances, material, hardware, finish, weld requirements, and revision information.
DXF Files
DXF files are useful for 2D geometry and flat cutting applications. They may also be useful when a specific flat geometry is required, but a DXF should not replace the finished 3D model for a formed sheet metal component.
STL Files
STL files are mesh-based files commonly used for 3D printing. Because they approximate surfaces using triangles rather than providing normal solid CAD geometry, they are generally not preferred as the primary production file for precision sheet metal fabrication.
Clearly Identify Dimensions That Apply After Finishing
Finishing processes can affect the finished dimensions of a part.
Powder coating, plating, anodizing, and other processes may change:
- Hole diameter
- Slot width
- Thread fit
- Mating clearances
- Grounding surfaces
- Cover-to-enclosure fit
If a critical dimension applies after finishing, state that requirement clearly on the drawing.
This gives the fabrication and finishing teams the information they need to determine whether masking, additional clearance, or a post-finish operation is required.
Include Clear Weld Requirements
For welded sheet metal fabrications, the drawing should identify the weld requirements that matter to the finished part.
Depending on the assembly, specify:
- Weld locations
- Weld type
- Continuous or intermittent weld requirements
- Whether a seam must be sealed
- Cosmetic weld surfaces
- Grinding or blending requirements
- Critical dimensions that apply after welding
Welding can introduce heat distortion, so identifying the dimensions that are truly critical after welding helps the fabricator plan fixturing, sequence, and inspection around the functional requirements of the assembly.
Send Related Assembly Components Together
If several fabricated parts need to fit together, send the complete assembly model and related drawings in the same RFQ whenever possible.
This is particularly important for:
- Covers and enclosures
- Doors and frames
- Brackets and mating panels
- Welded assemblies
- Hardware-intensive assemblies
- Parts with overlapping or nested geometry
When ASM can see the complete assembly, we can review the relationships between components instead of treating each part as an unrelated fabrication.
File Naming and Version Control
Files should be named clearly enough that the fabrication team can identify the part and revision without opening every document.
A simple naming convention might look like:
12345-01_REV-B.step12345-01_REV-B.pdf
The exact naming system is up to you, but the 3D model and drawing should use the same part number and revision designation.
Avoid sending files with ambiguous names such as:
- final.step
- final2.step
- newest.pdf
- updated-final.step
Clear file naming reduces the risk of an outdated drawing or model being mistaken for the current release.
Complete Design Information Helps Parts Move Faster
A fabrication drawing does not need to be overloaded with unnecessary notes, but the information that controls form, fit, function, finish, and inspection should be clear.
Providing a revision-matched 3D model and drawing package with material, thickness, critical tolerances, hardware, weld requirements, finishing information, and assembly context gives the fabricator what they need to review the job efficiently and move it into production.
By adopting these practices, you can reduce questions, improve communication, and lower the risk of avoidable fabrication or assembly problems.
