When customers request a quote for a custom sheet metal fabrication, they typically provide a formed 3D model and drawing. From there, the fabricator determines the flat geometry, bend details, corner reliefs, seams, and weld preparation needed to create the finished part.
Sheet metal corner design affects weld quality, distortion, fit, cosmetic appearance, and assembly time. The right corner construction depends on material, thickness, weld requirements, cosmetic expectations, and how much gap or overlap is intentionally designed into the joint.
Corner geometry is something we review on just about every enclosure, box, tray, and welded assembly we make. In many cases, the formed flanges intentionally leave a small gap at the corner that is later welded closed.
That gap is not necessarily a design mistake. When planned correctly, it can give the welder the access and material control needed to create a cleaner, more repeatable corner.
Why Is Corner Construction So Important?
Corner preparation has a major effect on the finished quality of a sheet metal part. Poorly designed corner geometry can create inconsistent gaps, excess weld buildup, distortion, poor alignment, or unnecessary finishing work.
Those outcomes are not in line with our quality standards.
The goal is to design the flat pattern and formed geometry so the corner is easy to locate, easy to weld, and capable of meeting the required dimensional and cosmetic expectations after welding.
Common Sheet Metal Corner Styles
For fabricated sheet metal parts, corner construction is usually less about selecting a textbook welding joint and more about determining how the formed flanges should meet before welding.
| Corner Style | Best Use | Main Advantage | Main Consideration |
|---|---|---|---|
| Open Corner | Welded boxes, trays, and enclosures | Provides controlled access for filler material and welding | Gap size and weld cleanup must be considered |
| Closed Corner | Tight cosmetic or sealed constructions | Minimal visible gap before welding | Fit-up and heat input must be carefully controlled |
| Lap / Overlap Corner | Thin sheet or parts where easier locating is useful | Provides additional contact area and simple fit-up | Creates overlapping material and a stepped surface |
| Tabbed / Interlocking Corner | Repeat welded assemblies | Self-locates parts and helps maintain squareness | Requires accurate laser or punch geometry |
| Mitered Corner | Cosmetic or frame-style geometry | Can create a clean outside appearance | More sensitive to cut accuracy, alignment, and welding distortion |
Should a Sheet Metal Corner Have a Gap Before Welding?
Sometimes, yes. A small intentional gap can make a corner easier to weld and can improve control of filler material, especially on thin sheet metal or aluminum parts.
The correct corner condition depends on:
- Material type
- Material thickness
- Welding process
- Required weld penetration
- Cosmetic expectations
- Finished tolerance requirements
A gap that is intentional and consistent is very different from a gap caused by poor bend geometry or inaccurate fabrication.
For this reason, the corner should be evaluated as part of the flat pattern and forming strategy before welding begins.
Corner Geometry Starts in the Flat Pattern
The quality of a welded corner is heavily influenced by the geometry created before the part ever reaches the welding area.
Important design considerations include:
- Corner relief: Provides clearance where multiple bends terminate near one another.
- Bend relief: Allows material to move during forming without tearing or pulling adjacent geometry.
- Flange intersection: Determines whether formed walls meet, overlap, or interfere.
- Seam placement: Determines where the welder will join the part.
- Tab-and-slot geometry: Can help locate and square multiple pieces before welding.
If these features are not designed correctly, the flanges may crash into one another, overlap unexpectedly, or leave an inconsistent opening that is difficult to weld cleanly.
How Material Affects Corner Construction
Our approach to corner construction depends heavily on part material. Aluminum, steel, and stainless steel respond differently to welding heat and filler addition, so the same corner preparation is not automatically appropriate for every material.
Aluminum Corners
At ASM, we commonly prefer an open-corner approach for many welded aluminum sheet metal parts.
Aluminum has high thermal conductivity and a lower melting temperature than steel, and thin aluminum edges can be especially sensitive to concentrated welding heat.
An intentional corner opening gives the welder room to control filler addition and heat while reducing the risk of burning through a thin edge.
Filler rod can then be added to bridge the opening and build the required corner geometry.
Steel and Stainless Steel Corners
Steel and stainless steel often allow different corner fit-up than aluminum because the materials respond differently to welding heat and edge fusion.
Depending on the part, we may use a tighter corner condition or an outside weld that fuses the formed edges together with relatively little additional filler.
The final approach still depends on material thickness, weld requirements, cosmetic expectations, and the geometry of the complete part.
How Welding Affects Sheet Metal Corners
Even when the corner geometry is correct, welding can change the shape of the assembly.
Localized heating and cooling cause the material to expand and contract. That shrinkage can:
- Pull a box or enclosure out of square
- Warp longer panels
- Change flange alignment
- Affect opening dimensions
- Shift mating or mounting features
Fixturing, tack-weld sequence, weld length, heat input, and welding order all help control distortion.
This is especially important when a drawing calls for tight dimensions across a welded assembly. Those requirements should reflect the realities of welding rather than treating the finished part like a machined solid block.
Using Interlocking Tabs to Improve Welded Corners
In addition to traditional corner preparation, we frequently use interlocking tabs and slots to make welded assemblies easier and more repeatable to build.
Properly designed tabs and slots can:
- Self-locate mating panels
- Help maintain squareness
- Reduce fixturing requirements
- Make tack welding easier
- Improve repeatability between assemblies
- Reduce the chance of panels moving during welding
These features can be especially valuable for prototype and low-volume welded assemblies because they build alignment directly into the cut geometry.

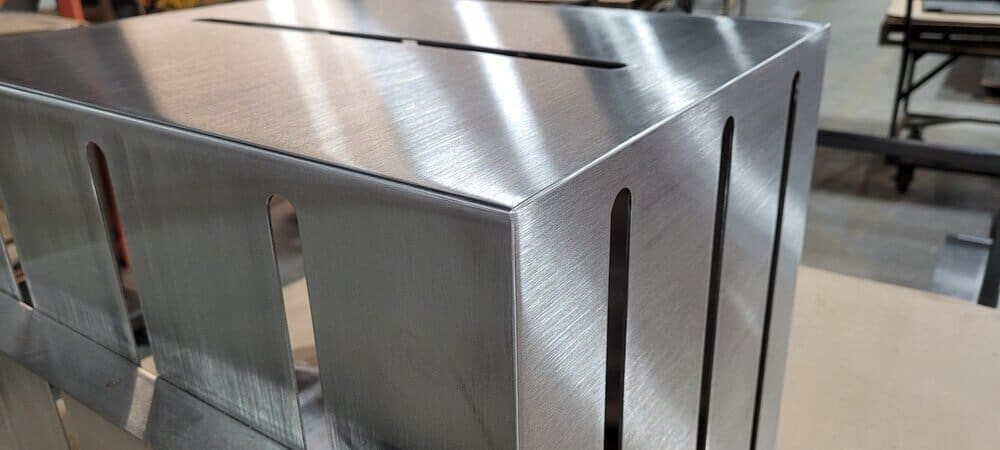

Define What the Finished Corner Should Look Like
Not every welded corner needs the same finish.
A hidden structural corner may be acceptable in an as-welded condition, while a customer-facing enclosure may require the weld to be blended until the corner appears nearly seamless.
Common finish expectations include:
- As-welded: Weld remains visible with minimal cleanup
- Cleaned: Spatter, oxidation, or excess material is removed
- Blended: Weld is smoothed into the surrounding sheet metal
- Ground flush: Weld buildup is removed to create a flatter cosmetic surface
- Sealed corner: Continuous weld is required to close the seam
If appearance matters, identify cosmetic surfaces and weld-finish expectations on the drawing. Grinding and blending can add substantial labor, so a corner that needs to disappear visually should not be quoted the same way as a hidden structural weld.
What Should Be Called Out on the Drawing?
Clear weld and corner requirements help prevent the fabricator from having to guess what matters to the finished assembly.
When applicable, identify:
- Weld locations
- Weld type
- Continuous or intermittent weld requirements
- Whether the corner must be sealed
- Cosmetic or visible surfaces
- Required weld finish
- Critical dimensions that apply after welding
- Corner gap requirements, if functionally important
- Post-weld finish such as powder coating, plating, or paint
If a particular corner condition is important to fit or appearance, showing it clearly on the drawing is far more useful than leaving the fabricator to infer the requirement from the 3D model alone.
Approved Sheet Metal’s Approach to Corner Construction
At ASM, corner construction starts with understanding how the part will be cut, formed, welded, finished, and ultimately used.
Rather than applying one universal corner design to every material and assembly, we review the complete combination of material, thickness, weld requirements, geometry, tolerance, and cosmetic expectations.
That may mean designing an intentional open corner for an aluminum enclosure, creating a tighter outside seam on a steel box, or adding interlocking tabs to help a multi-piece assembly locate itself before welding.
The goal is always the same: create a corner that is practical to fabricate, dimensionally controlled, and appropriate for the finished part.
Don’t let just any sheet metal shop construct your corners for you. Request a quote from Approved Sheet Metal and we promise we’ll never cut corners on cutting corners. 😉
Sheet Metal Part Design for Manufacturing Tip
CORNERS AND WELDING
Proper technique on corners that need to be welded is necessary to reduce cost and increase the overall strength of the corners. Approved Sheet Metal will always reprogram corners that need to be welded to ensure customers receive the best possible welds.
Get more DFM TipsMetal Fabrication Corner Construction FAQ
Why is proper corner construction crucial in sheet metal fabrications?
Corner construction plays a vital role in ensuring the durability and strength of sheet metal parts. When corners are not properly prepared for welding, it can lead to parts being out of tolerance, weak, and susceptible to breakage. Our obsessive attention to corner prep ensures that your fabricated parts meet high-quality standards and can withstand the test of time without compromising under pressure.
How does Approved Sheet Metal ensure high-quality corners in every fabrication?
Our approach to corner construction varies based on the material of the part. For aluminum parts, we utilize open corner welds due to aluminum’s sensitivity to excessive heat. To avoid damaging the material, we use filler rods to reinforce and strengthen corners, ensuring a solid weld without compromising the integrity of the aluminum. In the case of steel or stainless steel parts, we perform full outside welds, using minimal filler rod to fuse the metal together and create robust corners.
Why do aluminum parts require a different corner construction approach?
Aluminum is less rigid than steel or stainless steel, making it sensitive to high levels of heat during the welding process. To prevent the risk of blowing a hole in the material, we employ open corner welds with filler rods. These filler rods reinforce the corners and provide the necessary strength while avoiding excessive heat exposure.
How do you handle corner construction for steel and stainless steel parts?
For steel and stainless steel parts, we perform full outside welds. This involves cutting only one side of the corner, leaving more material compared to aluminum. With the addition of a minimal amount of filler rod, we fuse the metal together to create strong corners. This approach is effective in maintaining the structural integrity of the parts while ensuring aesthetically pleasing welds.
Are there additional techniques you use to enhance corner strength and weld aesthetics?
Yes, in addition to the corner construction approaches mentioned, we also implement reliable techniques like interlocking tabs. These tabs further strengthen corners and contribute to achieving beautiful welds consistently. Our commitment to detail and precision ensures that every aspect of corner construction is optimized for the best possible results in your sheet metal fabrications.
